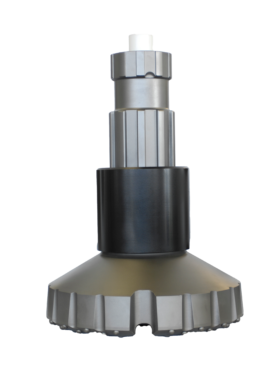

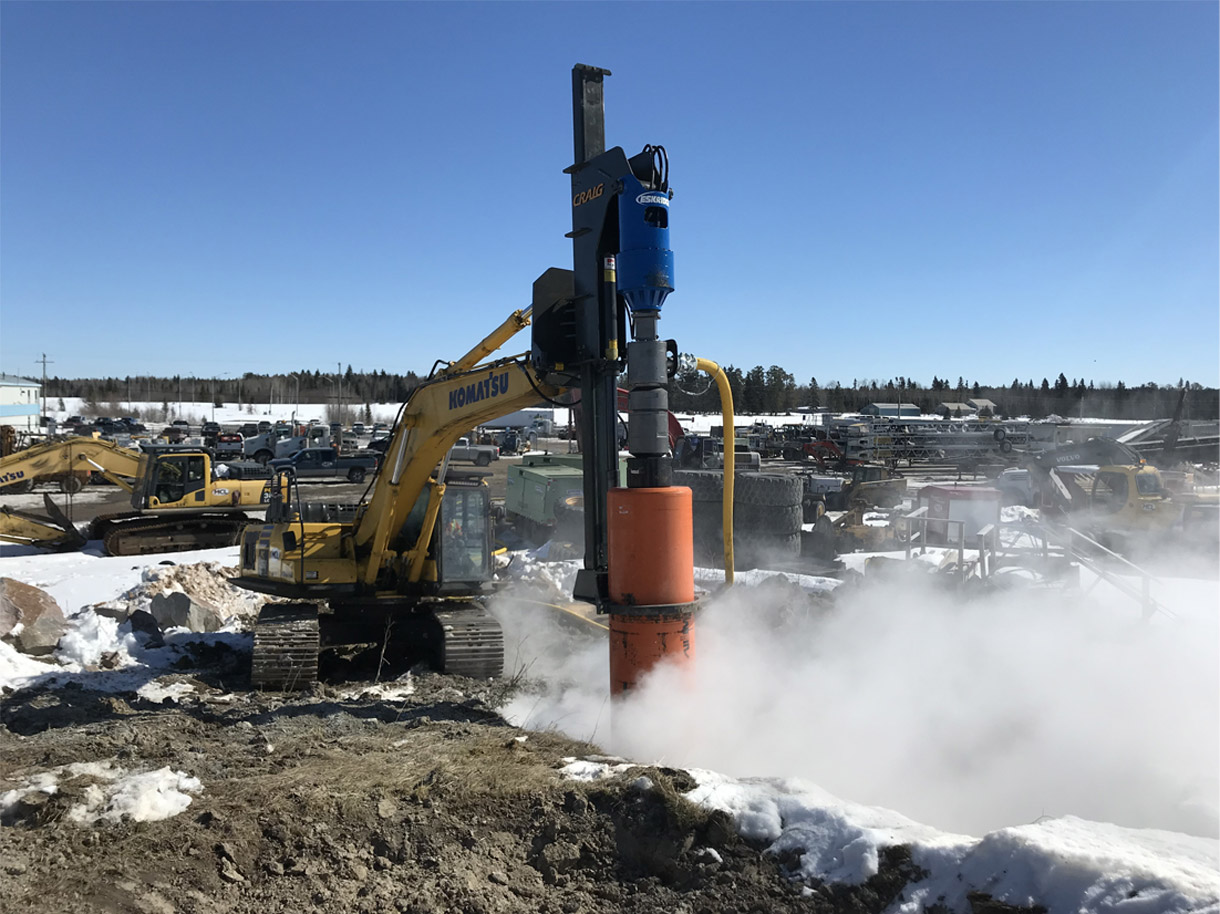

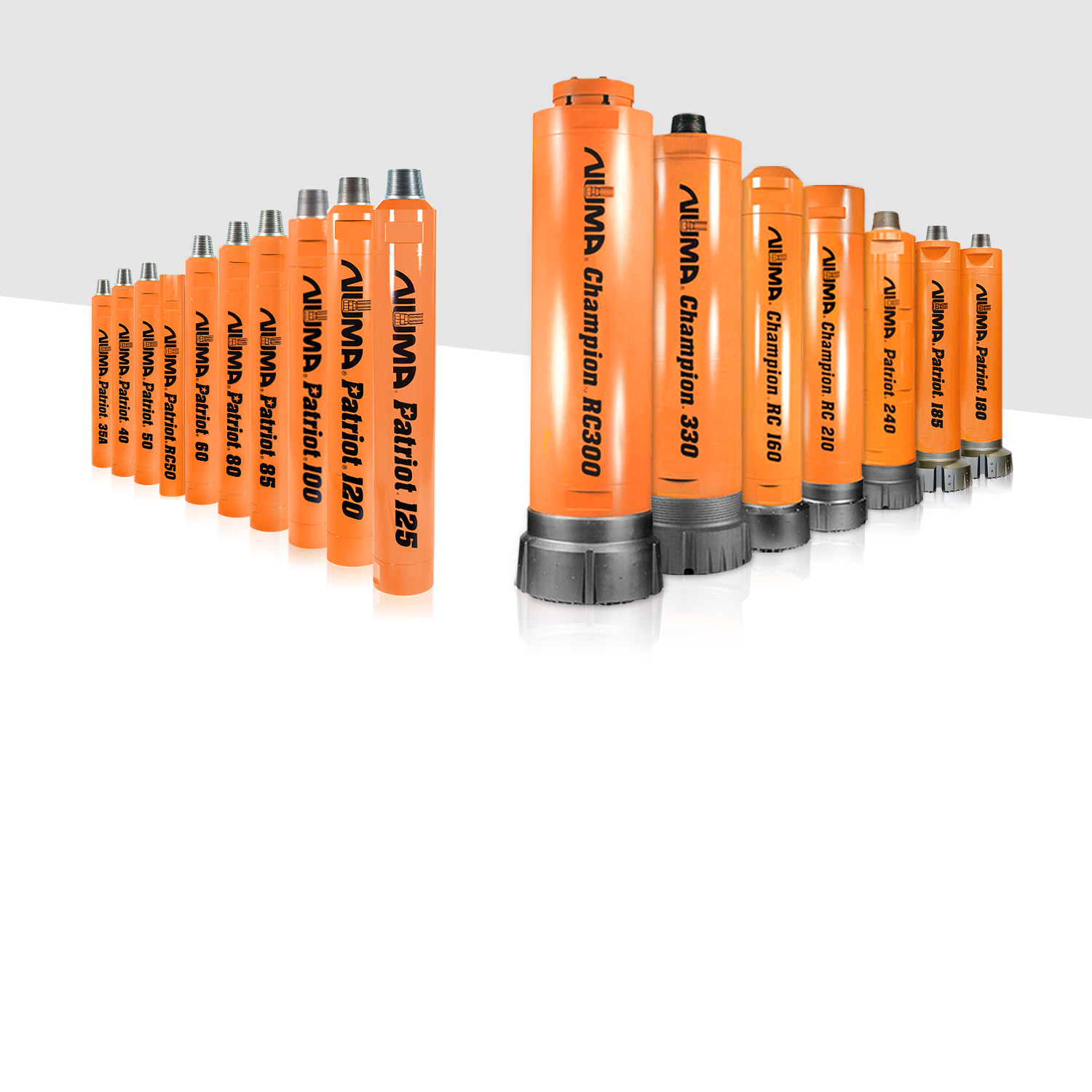

Down the hole hammers, usually called DTH, are basically a mini jackhammer screwed on the bottom of drill strings. The fast hammer action breaks hard rock into small flakes and dust and is blown clear by the air exhaust from the DTH hammer bits. DTH drills are one of the fastest ways to drill hard rock. It was only when down the hole hammers came along that many of the problems associated with the other systems were overcome – with the DTH system the energy source is constantly behind the drill bit with copious amounts of air passed through the drill string to operate the DTH Hammer which is then used to efficiently flush the bore hole clean.

Numa DTH products are designed to drill holes in hard rock, overburden, or loose strata formations in many different types of drilling applications. These markets are commonly found in the construction, oil & gas, mining, quarry, geothermal, water well, horizontal and other rock drilling industries. Operators of DTH products drill holes from a few feet to 1000’s of feet deep. In fact, one of the deepest holes on record was drilled to 17,600 feet (5364 m) below the surface.

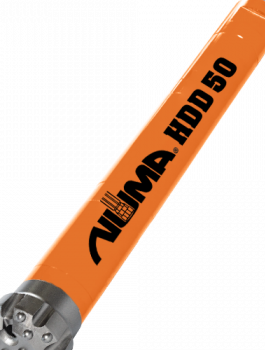

Horizontal Directional Drilling (HDD) is a method of installing underground pipelines, cables and service conduit through trenchless methods. Our horizontal directional drilling tools are a good fit when you installing infrastructure such as telecommunications and power cable conduits, water lines, sewer lines, gas lines, oil lines, product pipelines, and environmental remediation casings. Our tools are used when crossing waterways, roadways, shore approaches, congested areas, environmentally sensitive areas, and areas where other methods are costlier or not possible. The equipment used in horizontal drilling depends on the outer diameter of the pipe, length of the run, ground conditions and the surroundings above ground.

• The first stage consists of drilling a small diameter pilot hole. Drilling fluid is pumped through the drill pipe to the drill bit where high pressure jets and the bit will grind the soils ahead of the drill stem.
• The second step is to pre-ream the pilot hole and enlarge it to a size sufficient to safely install the product lines.
• The final step is the pullback of the pipe within the pre-reamed hole. The drill rod and reamer will be attached to a swivel, which is utilized between the product line and the reamer to prevent any torsional stress from the rotating drill string being transferred to the product pipe.
